Benefits
Enhanced quality
Superior Performance
Enhanced quality
Eight Safety Guarantees
Enhanced quality
Multi-encoder Supported
Enhanced quality
Linear and Direct Drive Rotary Motor Control
Enhanced quality
Functional Enhancement
Enhanced quality
Robust and Reliable ‒ Designed for Harsh Environments
Saving materials
Simplified Accessories for Easy Installation
Superior Performance
625 kHz current loop control algorithm for smooth and accurate instruction planning; speed loop bandwidth frequency of 3.5 kHz for rapid response to high-end industrial equipment; Brand-new ultra-small inertia motors for applications requiring high speed and high accuracy; Resonance suppression in 30 ms; Flexible load for stable operation
Eight Safety Guarantees
Eight safety mechanisms aligned with SIL3 standards defined by IEC 61508; Safety over EtherCAT (FSoE) to enhance industrial network safety; Built-in brake output to promote safety and efficiency
Multi-encoder Supported

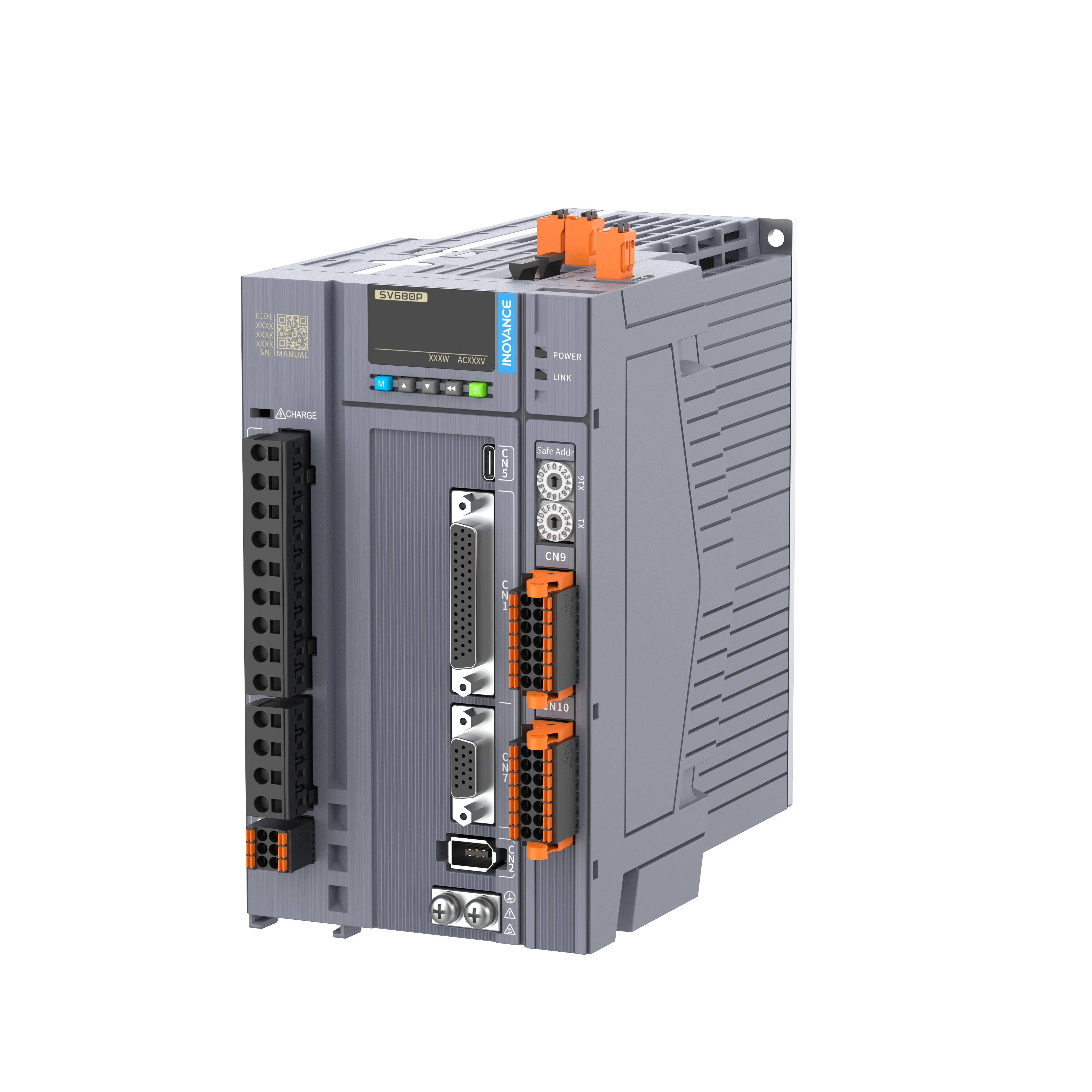

The SV680 servo drive as standard , supports Inovance's 23 and 26 bit serial single/multi-turn absolute encoders (Inovance's latest 26 bit serial single/multi-turn absolute provides more than 67.1 million pulses within one mechanical turn), Endat 2.2, BISS-C, SSI and ABZ incremental encoders fitted to customer's choice of servo motor.
Linear and Direct Drive Rotary Motor Control
Only one drive model for Rotary, DDL & DDR motor control. Accuracy error compensation table. Supports incremental and absolute encoders. Different wake & shake modes to improve motor phasing.
Functional Enhancement
Gantry synchronous control; Fully closed-loop bus with absolute value retention even at the outer loop; S-curve speed profile for seamless acceleration and deceleration; New process segmentation for flexible motion planning
Robust and Reliable ‒ Designed for Harsh Environments
Conformally coated PCBs are resistant to 3S2 and 3C3 environments (acc. to IEC 60721-3-3), providing further protection.
Simplified Accessories for Easy Installation
Safe and efficient built-in brake output; New V6 Battery-less motor; Built-in brake output without external relay
Extreme Motor Volume
20% to 30% reduction in new generation MS1-R series servo motor length to save footprint
