Benefit
Specially designed for intelligent injection molding flexible process control
Conserved space
Small size
Enhanced Quality
Full range of motors
Enhanced quality
High stiffness
Improved efficiency
High speed
Enhanced Quality
High energy-saving performance
Enhanced quality
Low temperature rise
Small size
Smaller footprint with torque output unchanged, max.reduction of length reaching 29% Dimensions of mounting interfaces Compatible withMS1-Z series motors
Full range of motors
Ultra-low inertia available for motors with flange size 60/80 to better fit applications requiring quick jog control; 220 V models available for motors with flange size 100/130/180
High stiffness
Stiffness of typical models increased by five levels
High speed

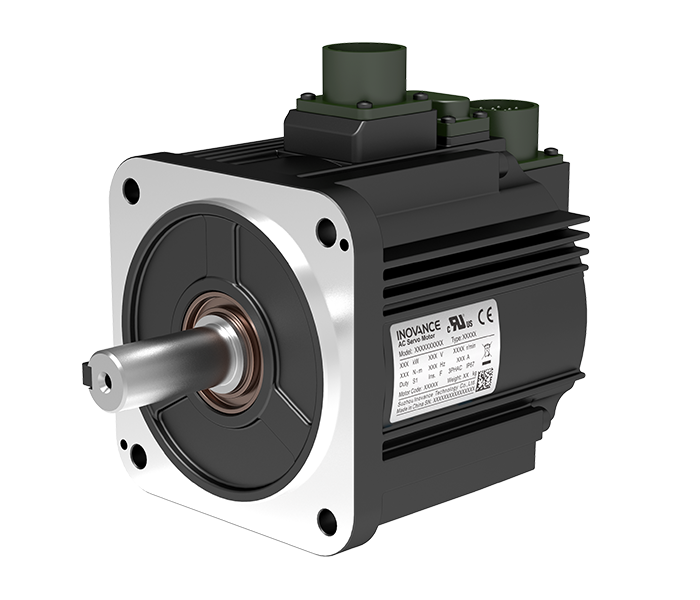

Max speed of MSIH1 and MS1H4 motors with flange size 40/60/80 increased from 6000 rpm to 7000 rpm Max speed of MS1H2 motors increased from 5000 rpm to 6000 rpm Max speed of MS1H3 motors (flange size 130/180) increased from 3000rpm to 4500 rpm Note: The preceding speeds are for motors with 23-bit or 26-bit encoders.
High energy-saving performance
550 W to 7.5 kW motors compliant with energy efficiency equal to IE5 standard
Low temperature rise
Optimized electromagnetic circuit to reduce temperature rise Flange size 60 & 80: Temperature rise reduced by 20K compared with previous motors
Applications
