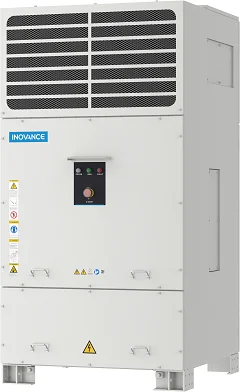

IES920 Series 2.5 MW Centralized PCS

The IES920 series centralized power conversion system (PCS) exchanges energy betweenthe storage battery and the grid to charge and discharge the storage battery in acontrolled way. In a grid-connected system, the PCS implements load shifting, active power reserve, andreactive power support. In addition, the PCS supports various charge and dischargemodes, such as constant voltage, constant current, and constant power.

Intelligent and efficient

• Tri-level topology; maximum efficiency of 99%
• Off-grid V/f output, GFL/GFM VSG, and black start functions
• Quick power response, allowing for full-load charge/discharge switchover within 30 ms

Flexible and compatible

• Supports multiple charge/discharge modes: constantvoltage, constant current, and constant power
• Supports Modbus-RTU, CAN 2.0B, Modbus-TCP, IEC 61850, and EtherCAT protocols

Safe and reliable

• Top-rear exhaust, reducing heat island effect and duct blockage risks
• Third-generation enclosed air-water cooling design, offering exceptional environmental adaptability
• Dual protection with pressure relief and ventilation devices

Cost-effective

• 30% increase in power density, improving site connection ratio
• Parallel connection of multiple systems for flexible expansion
