Benefit
Enhanced quality
Easy Motion and Process Control
Conserved space
Easy Selection and Expansion
Saving materials
Easy Interconnection and Networking
Improved efficiency
Easy Programming and Commissioning
Reduced energy consumption
Easy Delivery, with All Core Components Locally Available

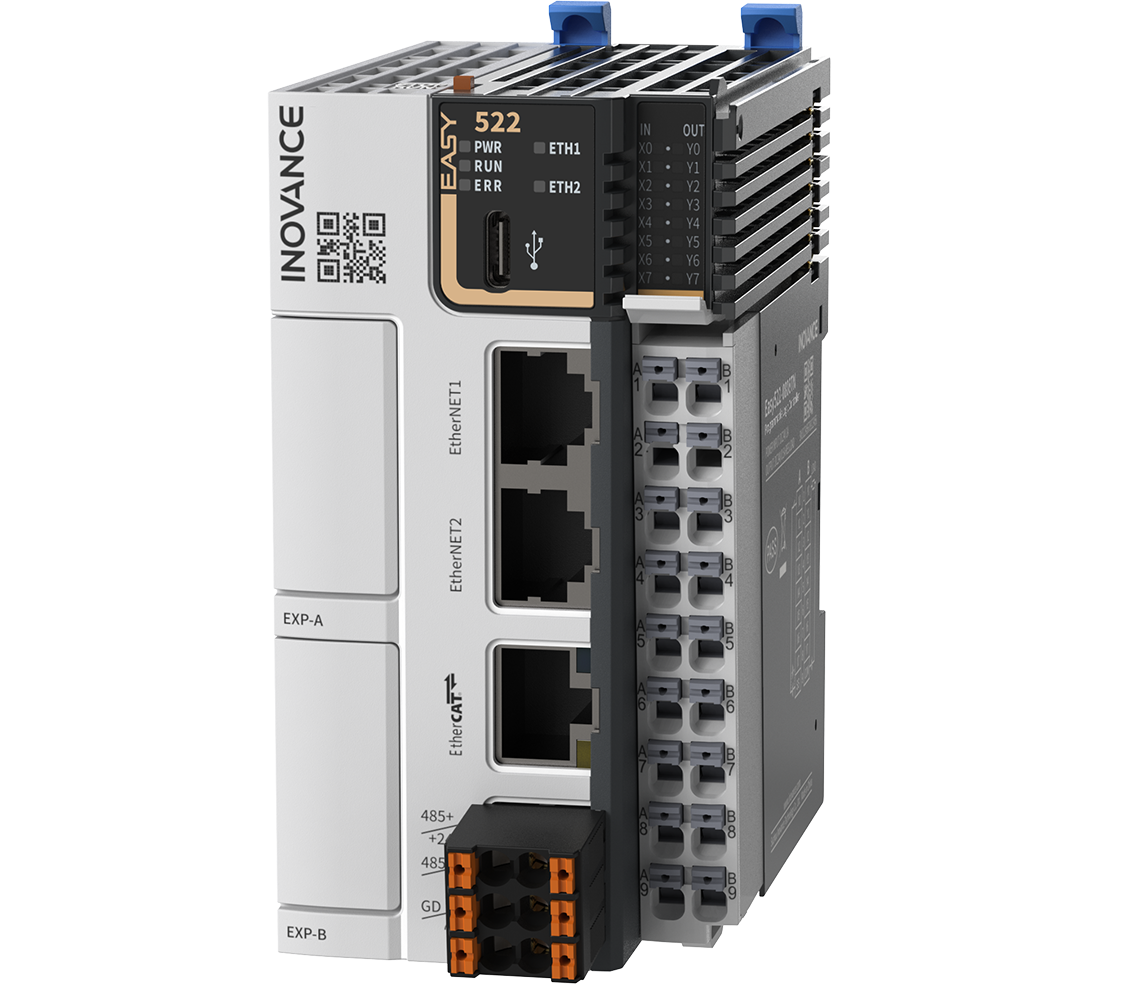

Easy Motion and Process Control
Quad-core processor: Fast instruction processing in nanoseconds, accurate motion control, and stable process control
Auto-tuning PID: Integrated auto-tuning and adaptive PID algorithm allowing for quick response, accurate adjustment, and easy control of temperature, pressure, and flow
32-axis high-speed bus control: Support for synchronous motion and complex processes, allowing for full-speed operation to increase end users' benefits
Auto-tuning PID: Integrated auto-tuning and adaptive PID algorithm allowing for quick response, accurate adjustment, and easy control of temperature, pressure, and flow
32-axis high-speed bus control: Support for synchronous motion and complex processes, allowing for full-speed operation to increase end users' benefits

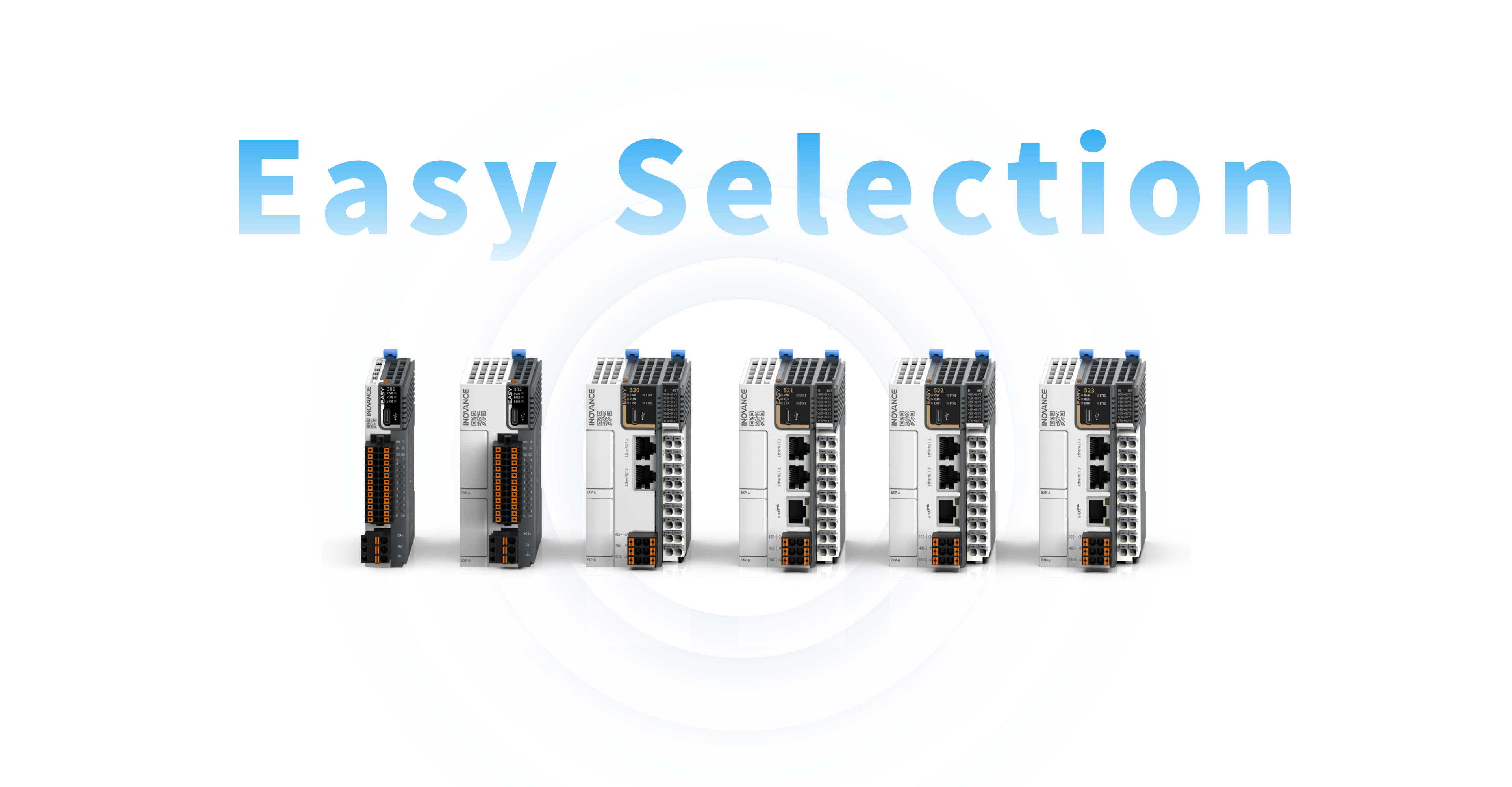

Easy Selection and Expansion

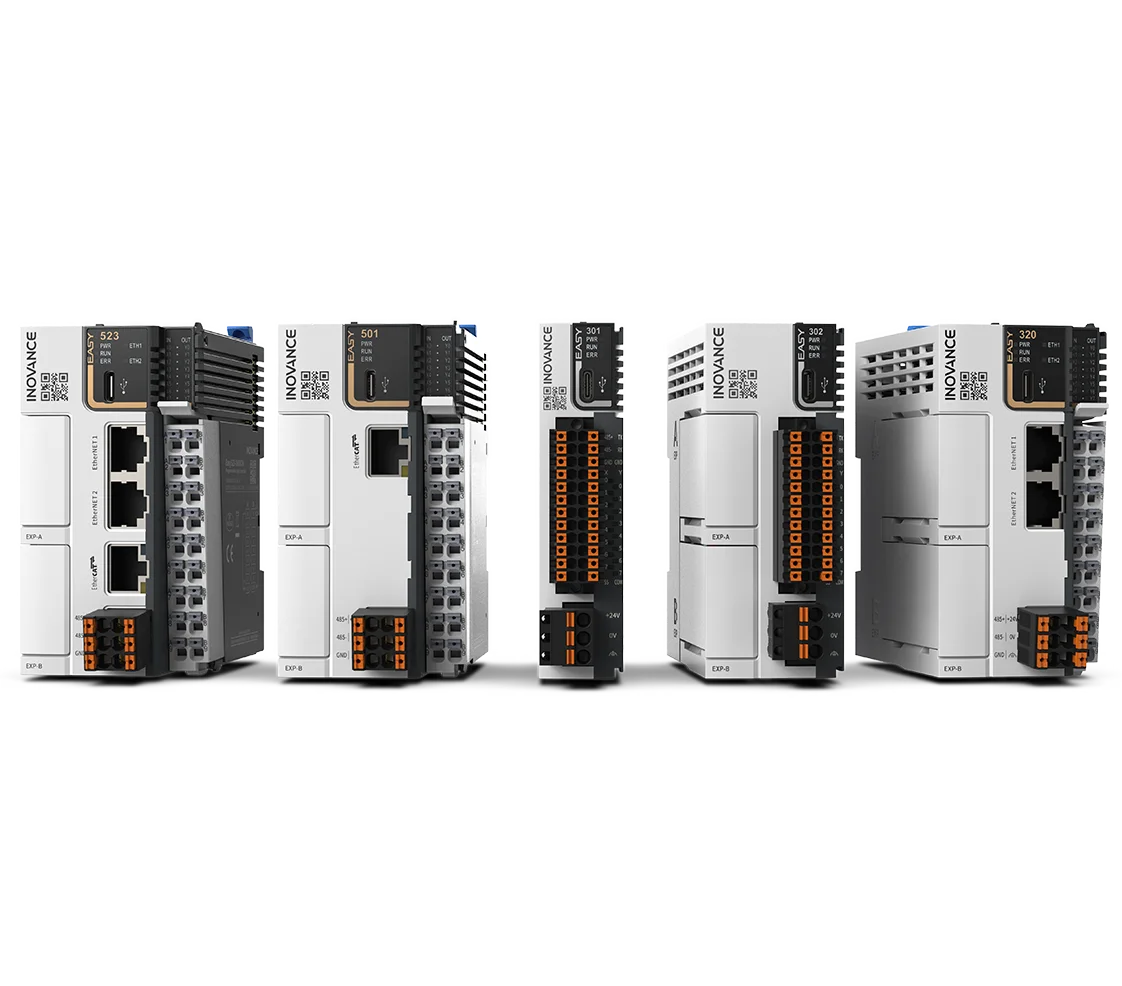

Eight models: Suitable for small to medium automation equipment seeking a small footprint, multi-axis motion control, temperature control, and communication networking, relieving you from complex model selection

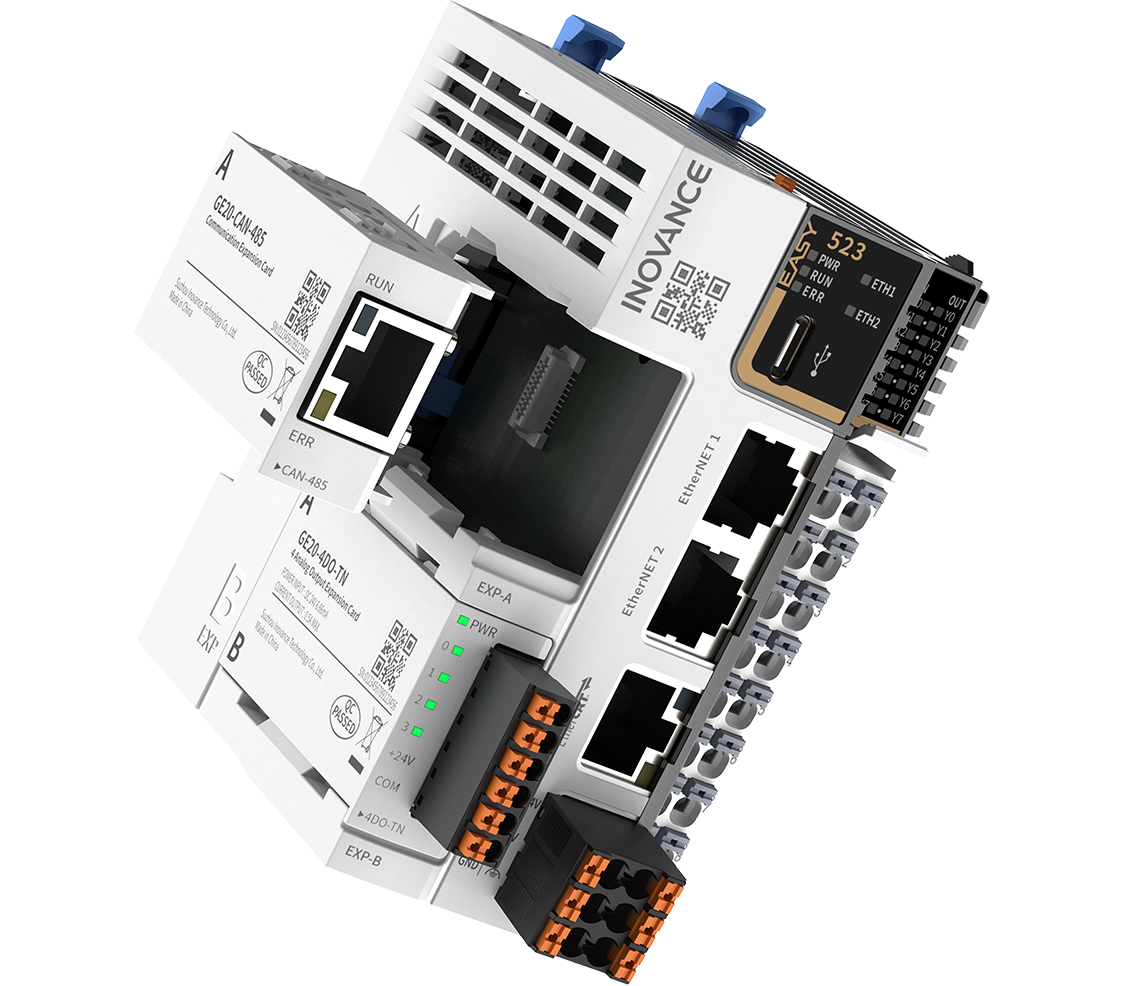

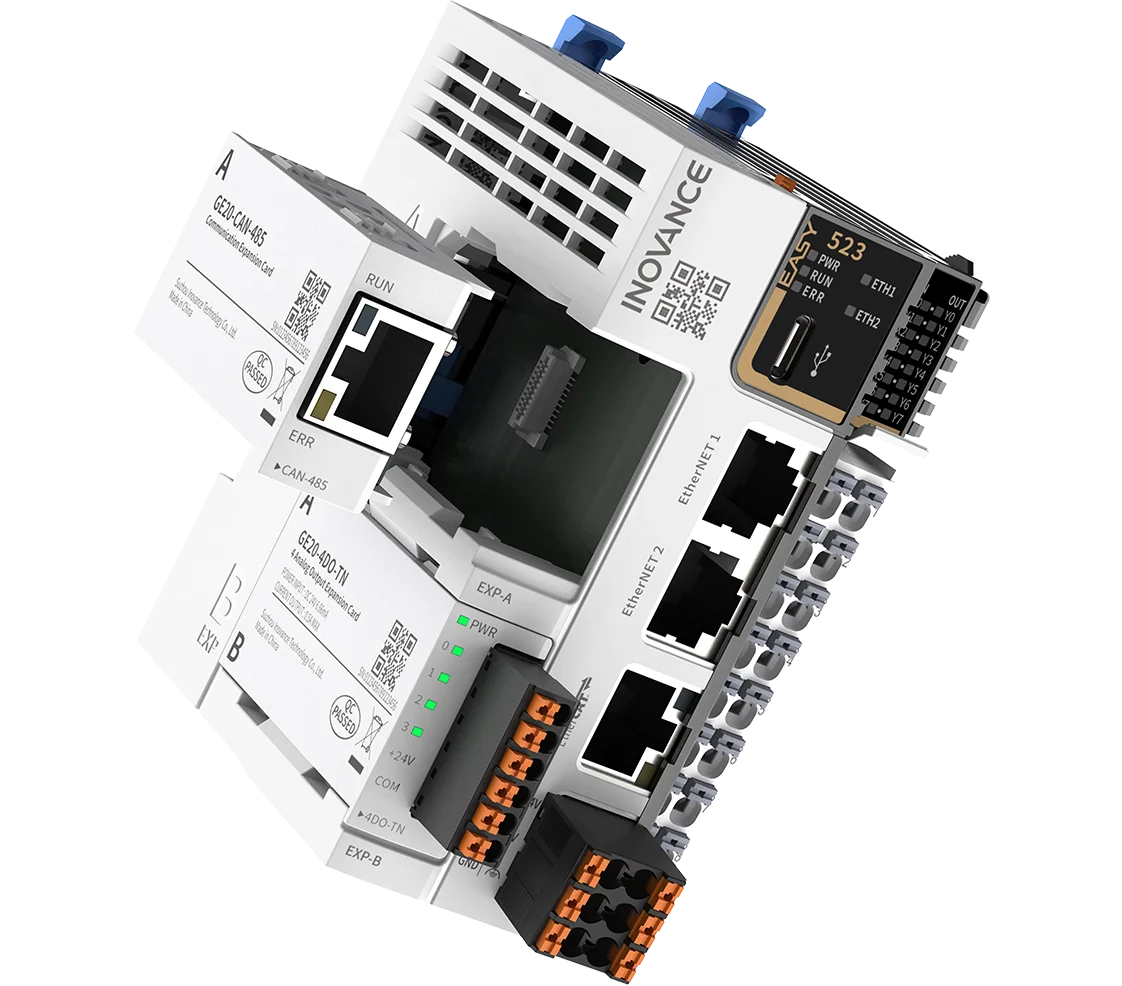

Two expansion slots: Communication, analog, and digital, adaptive to different scenarios to boost resource efficiency and cabinet space efficiency while reducing electrical costs

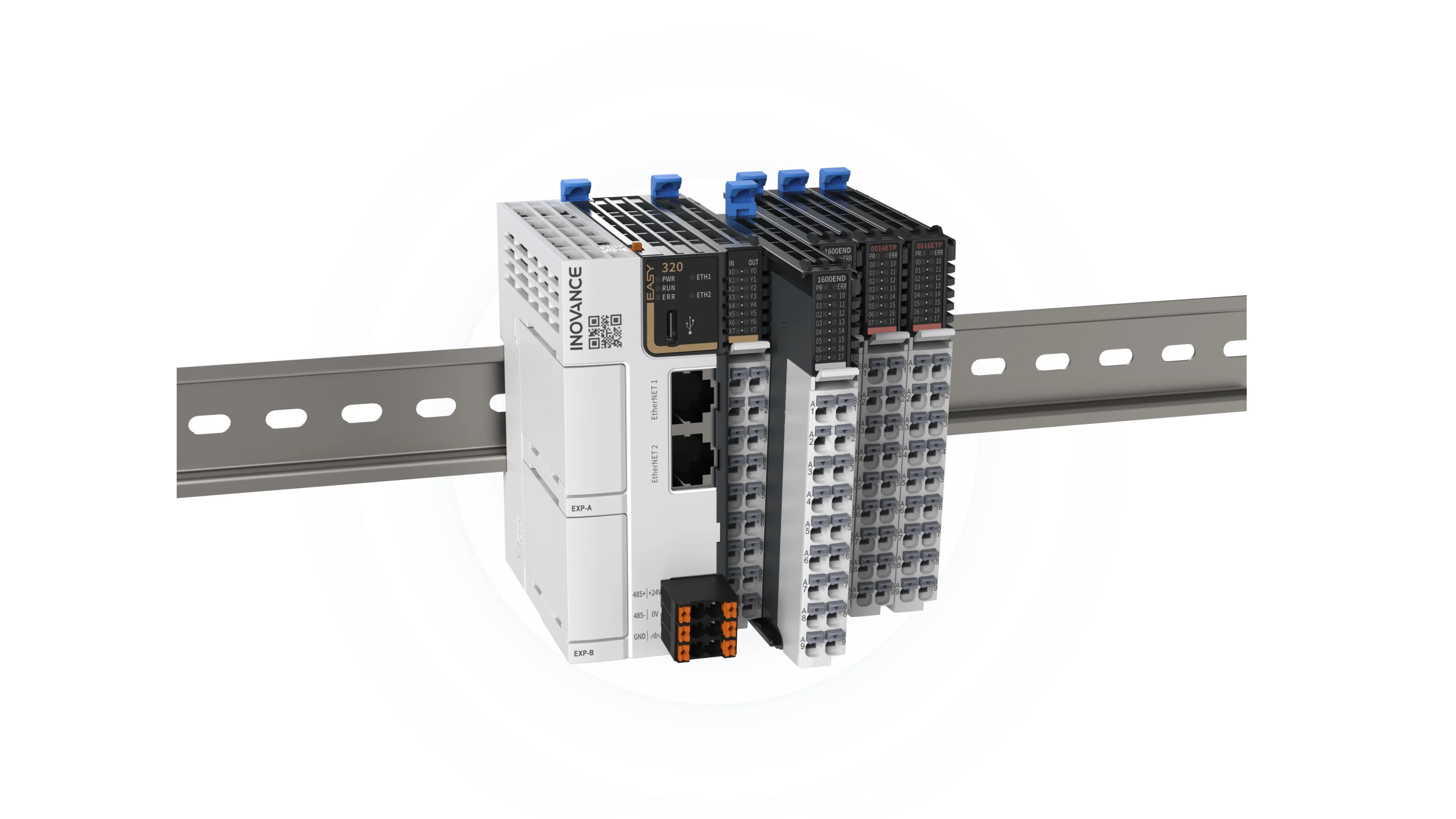

80% higher assembly efficiency: Installation hours reduced by 80% and space saved by 2/3 thanks to the local GL20 series blade-type I/O expansion module with push-in terminals that support vertical insertion and tool-free wiring
Two expansion slots: Communication, analog, and digital, adaptive to different scenarios to boost resource efficiency and cabinet space efficiency while reducing electrical costs
80% higher assembly efficiency: Installation hours reduced by 80% and space saved by 2/3 thanks to the local GL20 series blade-type I/O expansion module with push-in terminals that support vertical insertion and tool-free wiring

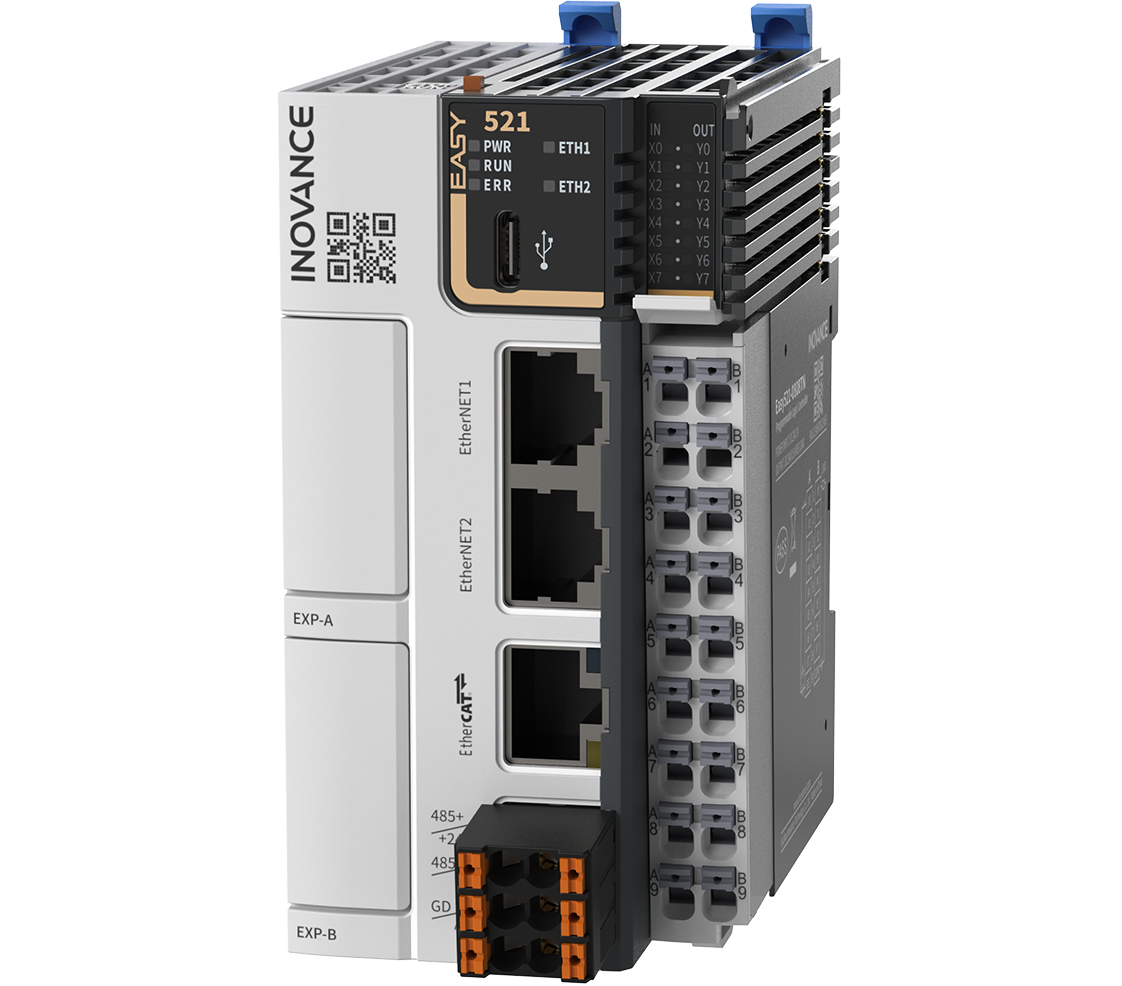

Easy Interconnection and Networking

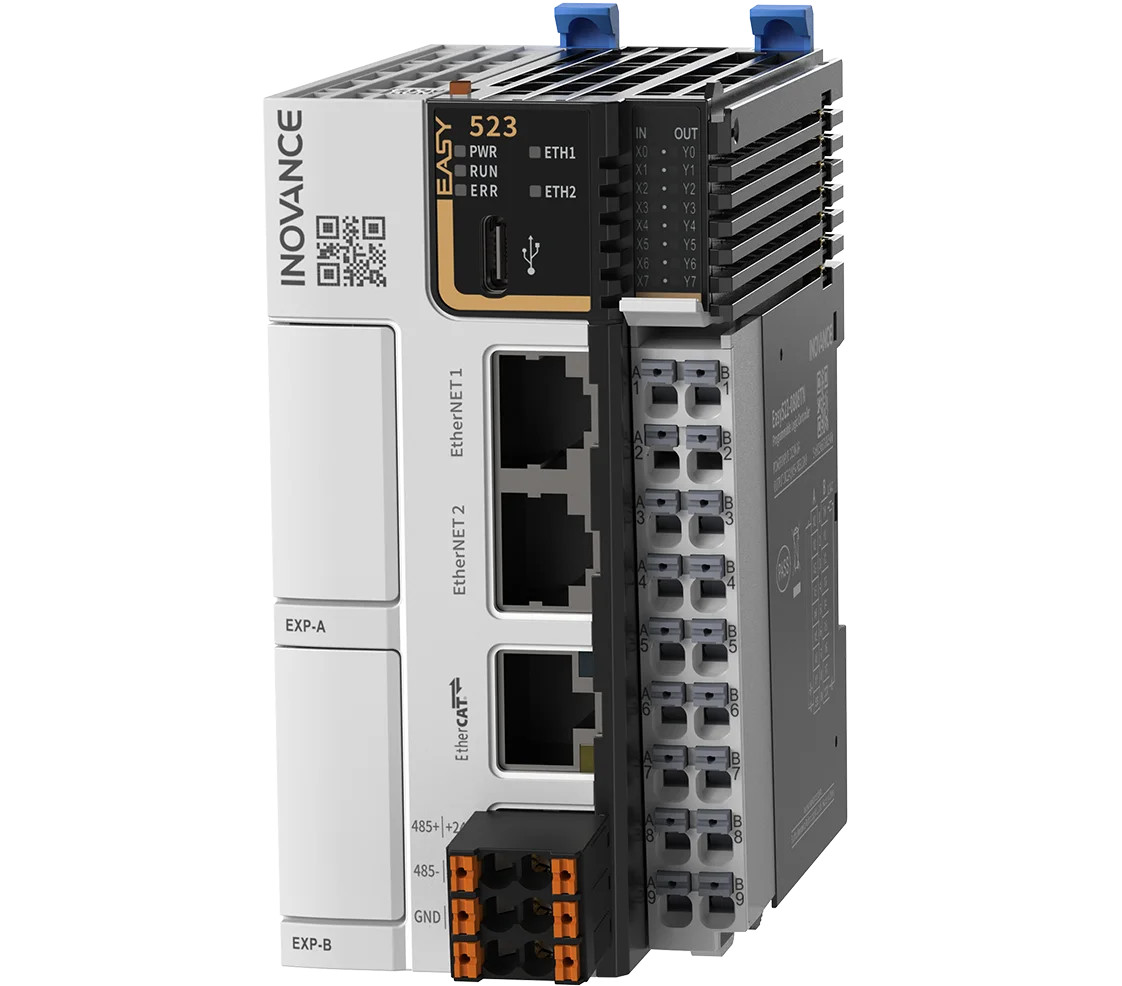

Dual Ethernet ports: Fewer network cables and switches for convenient networking and cascading
IP addresses in dual segments: Isolation between internal and external networks and easy connection to the host controller, without the need to modify network configurations for sending data to terminals
Open data services: Support for multiple industrial communication protocols including EtherNet/IP (minimum communication cycle of 5 ms), Modbus TCP, and CANopen, allowing for easy access to peripheral equipment and high-speed data transmission
IP addresses in dual segments: Isolation between internal and external networks and easy connection to the host controller, without the need to modify network configurations for sending data to terminals
Open data services: Support for multiple industrial communication protocols including EtherNet/IP (minimum communication cycle of 5 ms), Modbus TCP, and CANopen, allowing for easy access to peripheral equipment and high-speed data transmission

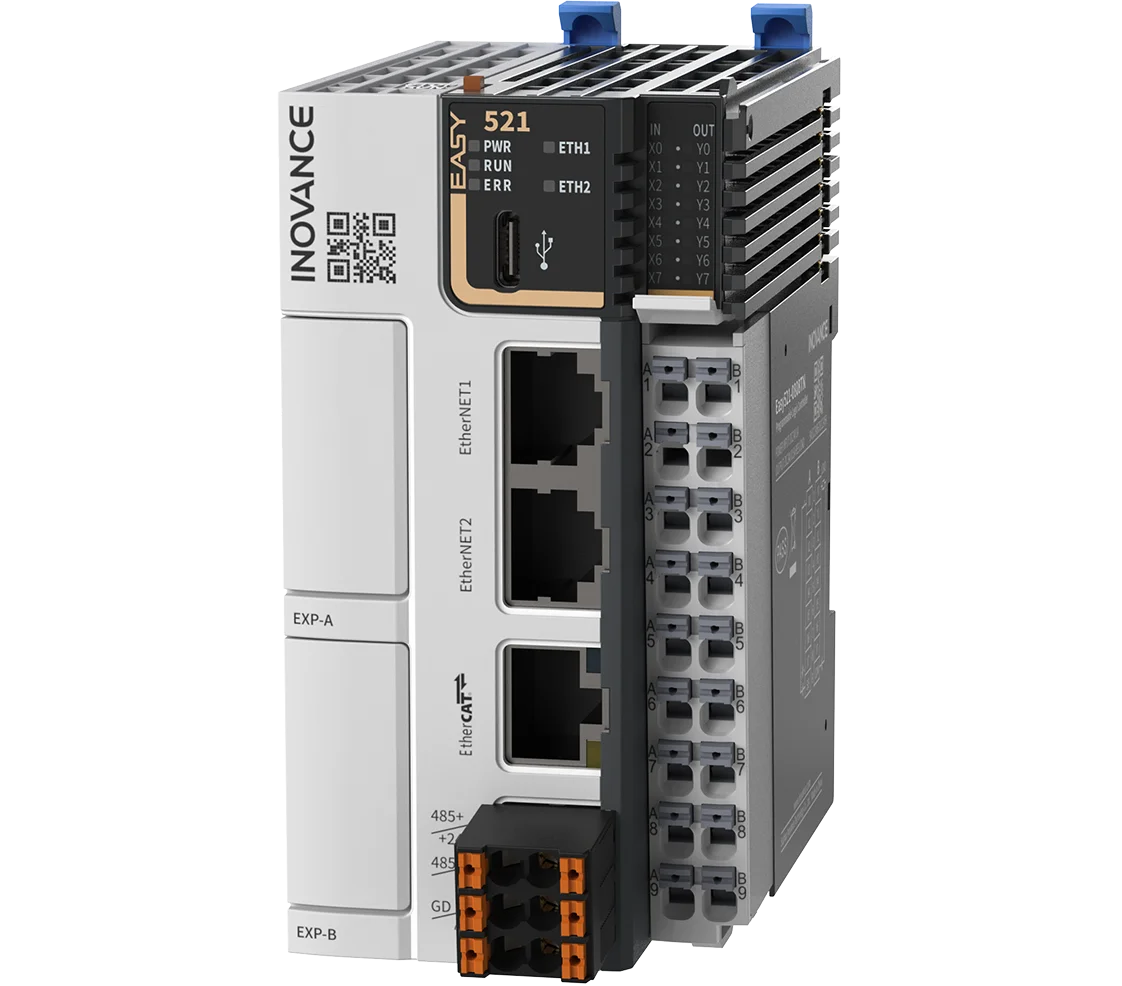

Easy Programming and Commissioning
Small PLC for smooth programming and significant engineering feats
ST programming, making it easy for engineers to write complex algorithms and logic; offline commissioning to alleviate on-site pressure; function block encapsulation for algorithm reusability
Activation and deactivation of local modules, EtherCAT slaves, and servo axes by means of variables; modification of system parameters by means of program; one program covering multiple models, which can be selected easily on the HMI
Automatic scanning, one-key EtherCAT slave configuration, and commissioning-free servo
Associative input and user-defined variables, which significantly improve program readability; offline simulation with IT7000; programming efficiency boosted in multiple ways, reducing project commissioning cycles
ST programming, making it easy for engineers to write complex algorithms and logic; offline commissioning to alleviate on-site pressure; function block encapsulation for algorithm reusability
Activation and deactivation of local modules, EtherCAT slaves, and servo axes by means of variables; modification of system parameters by means of program; one program covering multiple models, which can be selected easily on the HMI
Automatic scanning, one-key EtherCAT slave configuration, and commissioning-free servo
Associative input and user-defined variables, which significantly improve program readability; offline simulation with IT7000; programming efficiency boosted in multiple ways, reducing project commissioning cycles
Easy Delivery, with All Core Components Locally Available
CPU and core components all locally available, ensuring the security of supply
