IES900 Series 1725 kW Centralized PCS

IES900 series PCS is used for energy exchange between batteries and the power grid. The nominal capacity is 1725kW, which is suitable for a variety of scenarios such as peak shaving and valley filling, frequency and peak regulation, active power reserve and reactive power support. The product also meets the requirements of grid-forming scenarios. The air-liquid cooling technology and the IP65 design greatly improve the security.

Intelligent and efficient

• Tri-level topology; maximum efficiency of 99%
• Off-grid V/f output, GFL/GFM VSG, and black start functions
• Quick power response, allowing for full-load charge/discharge switchover within 30 ms

Smartly interconnected

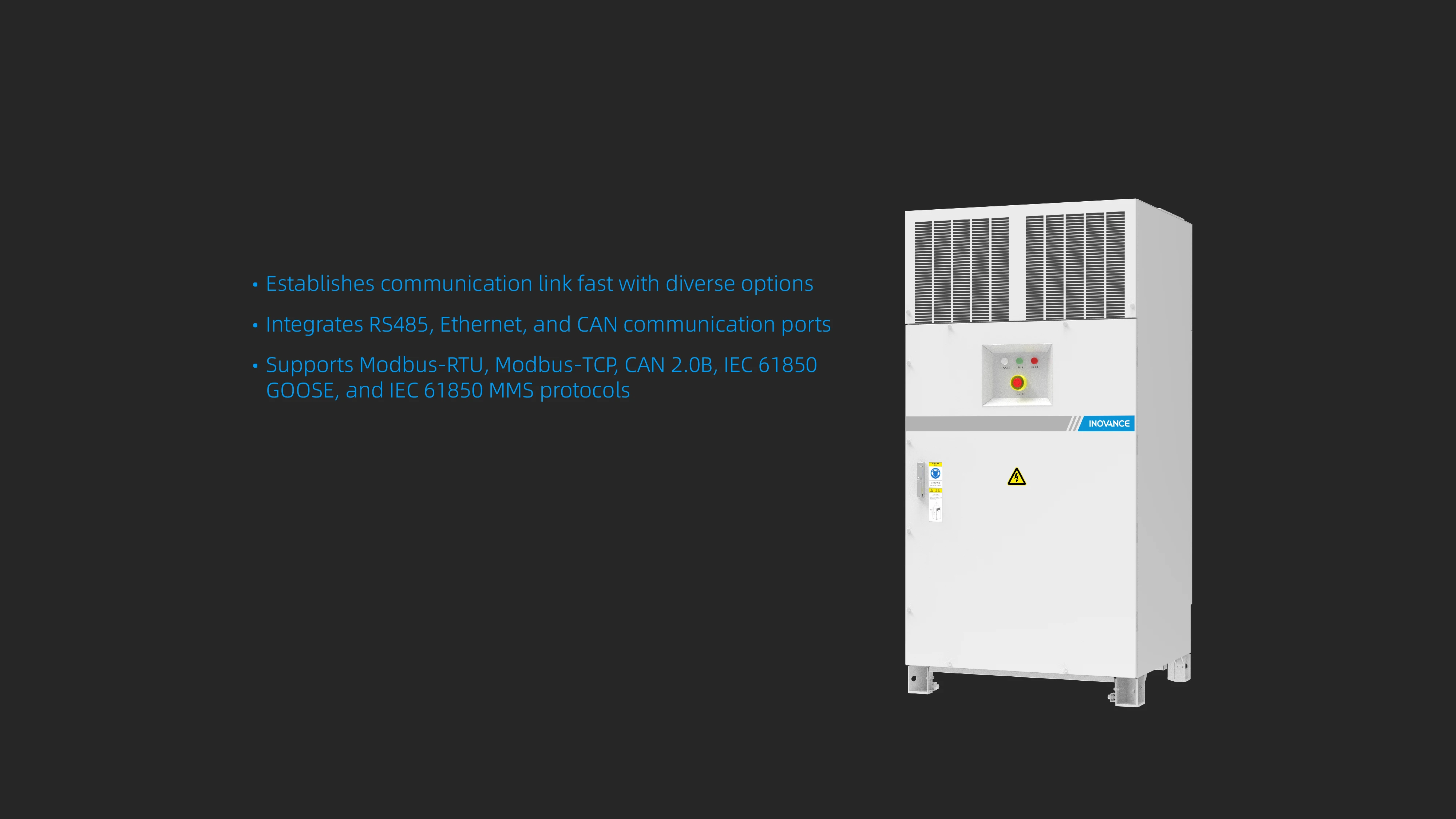

• Establishes communication link fast with diverse options
• Integrates RS485, Ethernet, and CAN communication ports
• Supports Modbus-RTU, Modbus-TCP, CAN 2.0B, IEC 61850 GOOSE, and IEC 61850 MMS protocols

Safe and reliable

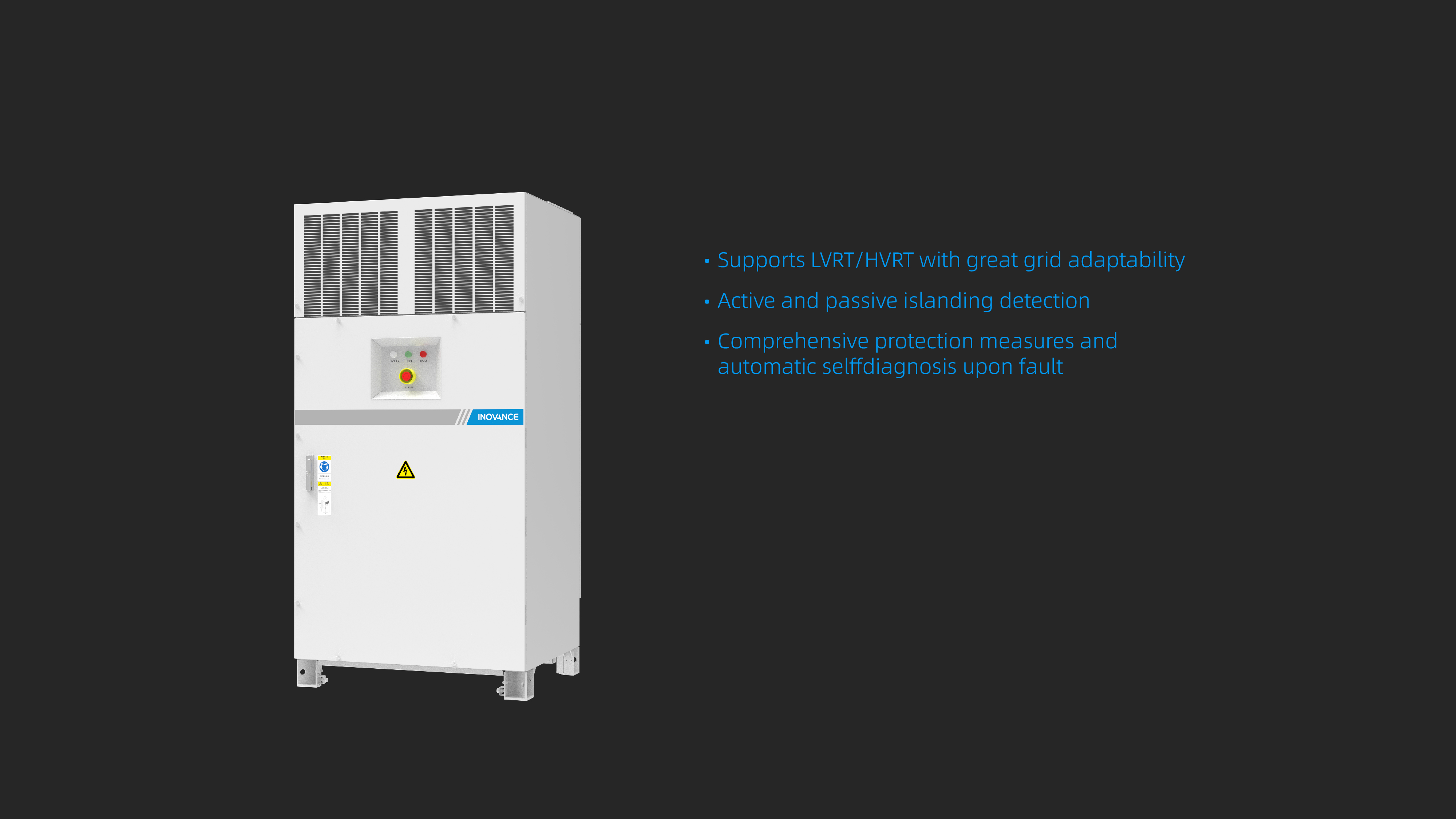

• Supports LVRT/HVRT with great grid adaptability
• Active and passive islanding detection
• Comprehensive protection measures and automatic selfdiagnosis upon fault

Cost-effective

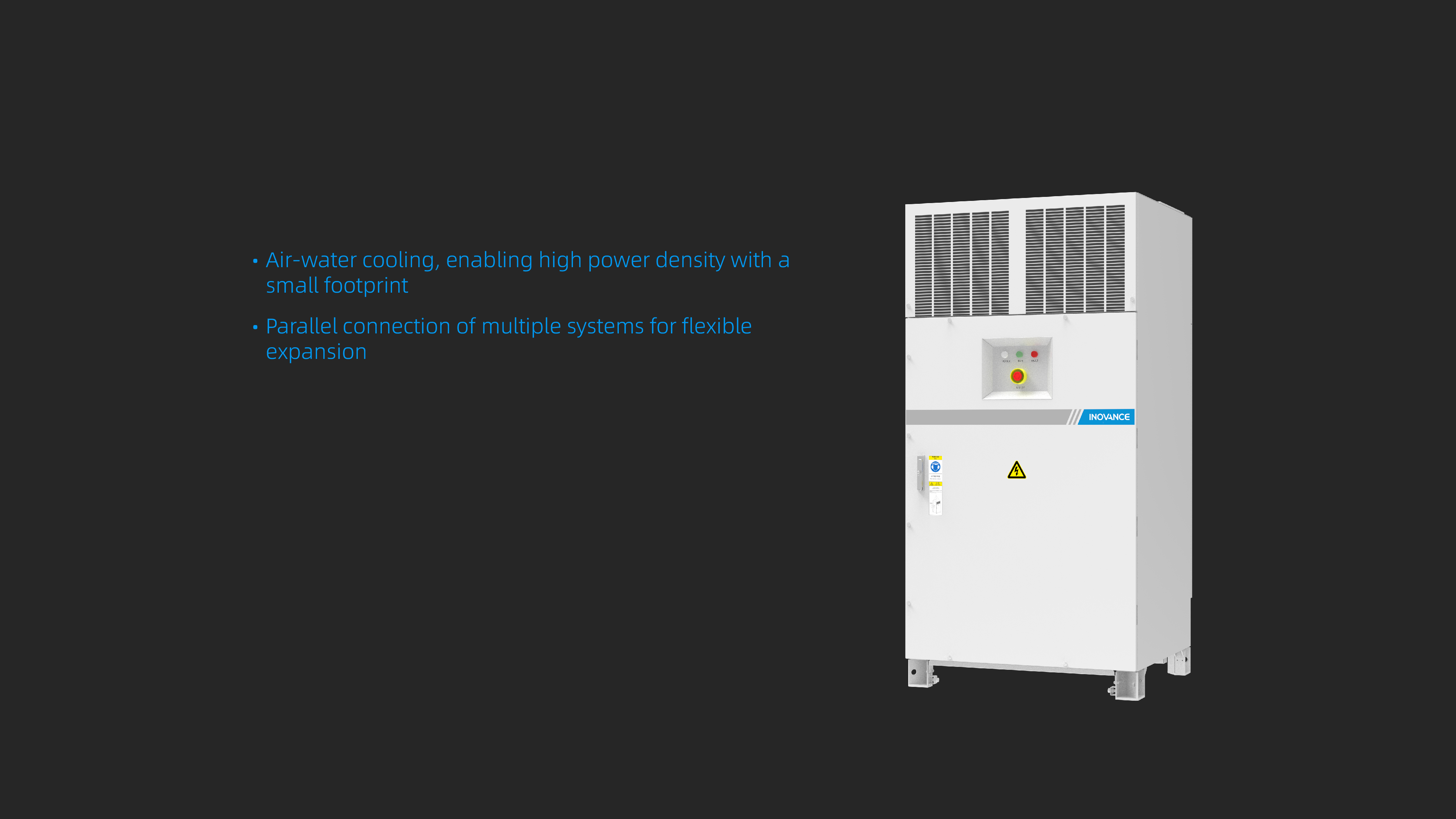

• Air-water cooling, enabling high power density with a small footprint
• Parallel connection of multiple systems for flexible expansion
