Benefit
Enhanced Quality
High Performance, Large Capacity
Enhanced Quality
Rich Motion Control Features
Improved efficiency
Flexible Networking Options
Saving labor cost
User-Friendly Software
Conserved space
Small-Scale Automation Equipment
Enhanced Quality
Phase Pulse Counting, Interrupt, and Pulse Capture
High Performance, Large Capacity
Easily meets increasingly complex process demands
Rich Motion Control Features
Ensures precise and flawless equipment motion
Flexible Networking Options
Supports Ethernet, CANopen, and CANlink for seamless connection of information technology and automation
User-Friendly Software
Simplifies application processes with the intuitive graphical interface
Small-Scale Automation Equipment

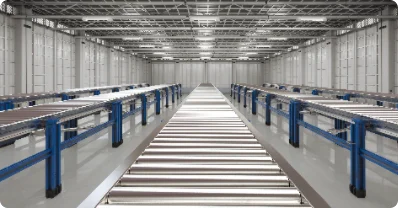

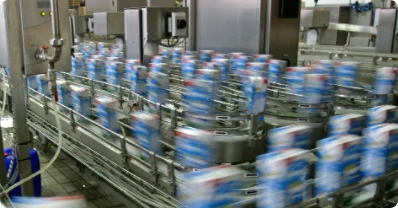

Primarily used in line automation, woodworking machinery, glass machinery, handling, loading/unloading, and customized electronic manufacturing
64 k-steps program storage and 48 k-words data storage
Two serial ports for MODBUS and monitoring; one CAN port for CANlink and CANopen
One 100 Mbps Ethernet port for MODBUS TCP/IP and free protocols
64 k-steps program storage and 48 k-words data storage
Two serial ports for MODBUS and monitoring; one CAN port for CANlink and CANopen
One 100 Mbps Ethernet port for MODBUS TCP/IP and free protocols
Rich Control Features
5-channel 200 kHz pulse output and abundant positioning control instructions, enabling S-curve acceleration/deceleration, cam synchronous control, and 2-axis linear and circular interpolation
Phase Pulse Counting, Interrupt, and Pulse Capture
8-channel 200 kHz high-speed input, facilitating single-phase and A/B phase pulse counting, with support for interrupt and pulse capture
Programmable with USB and Ethernet interfaces
Programmable with USB and Ethernet interfaces
