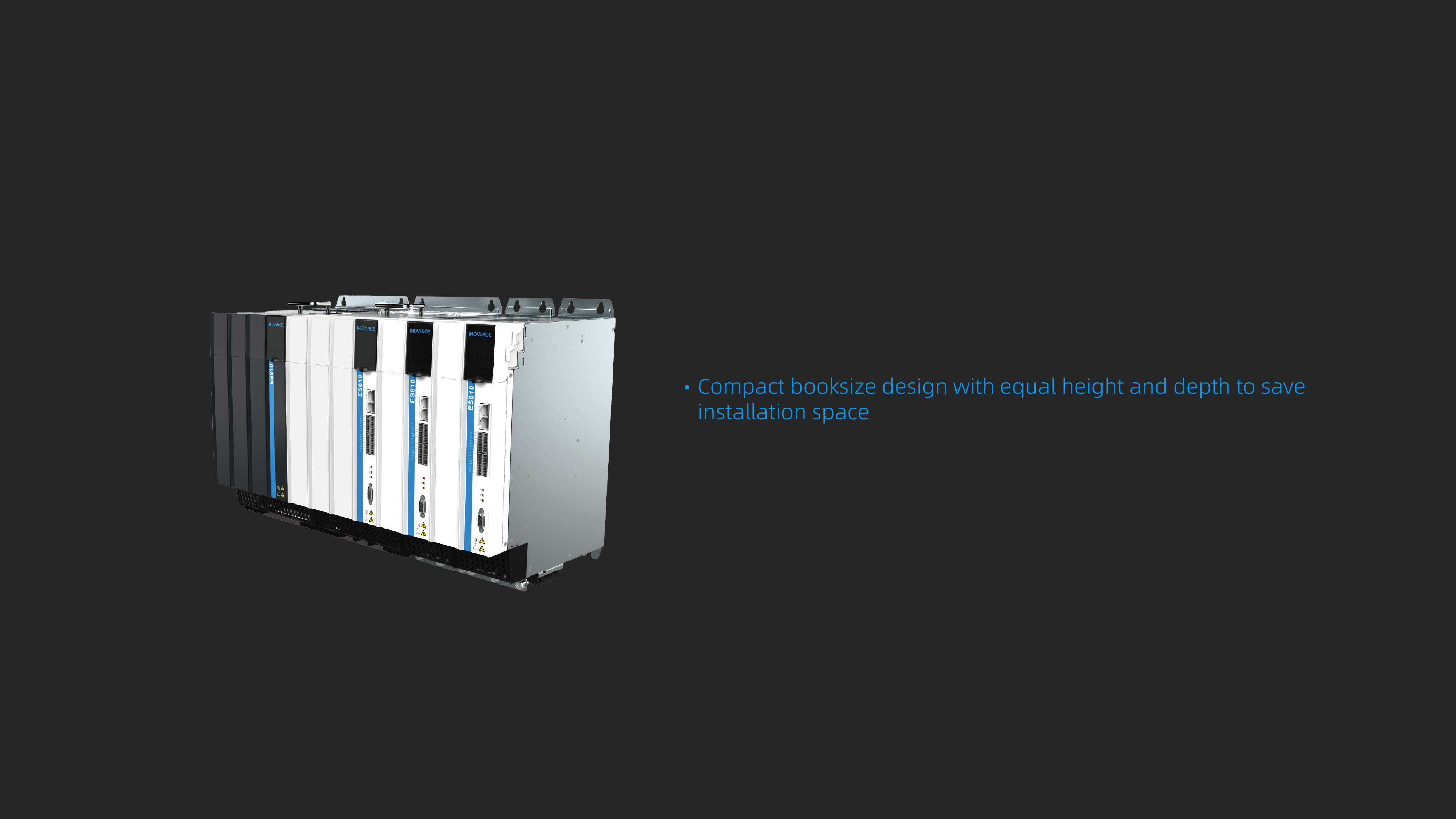

ES810 Series

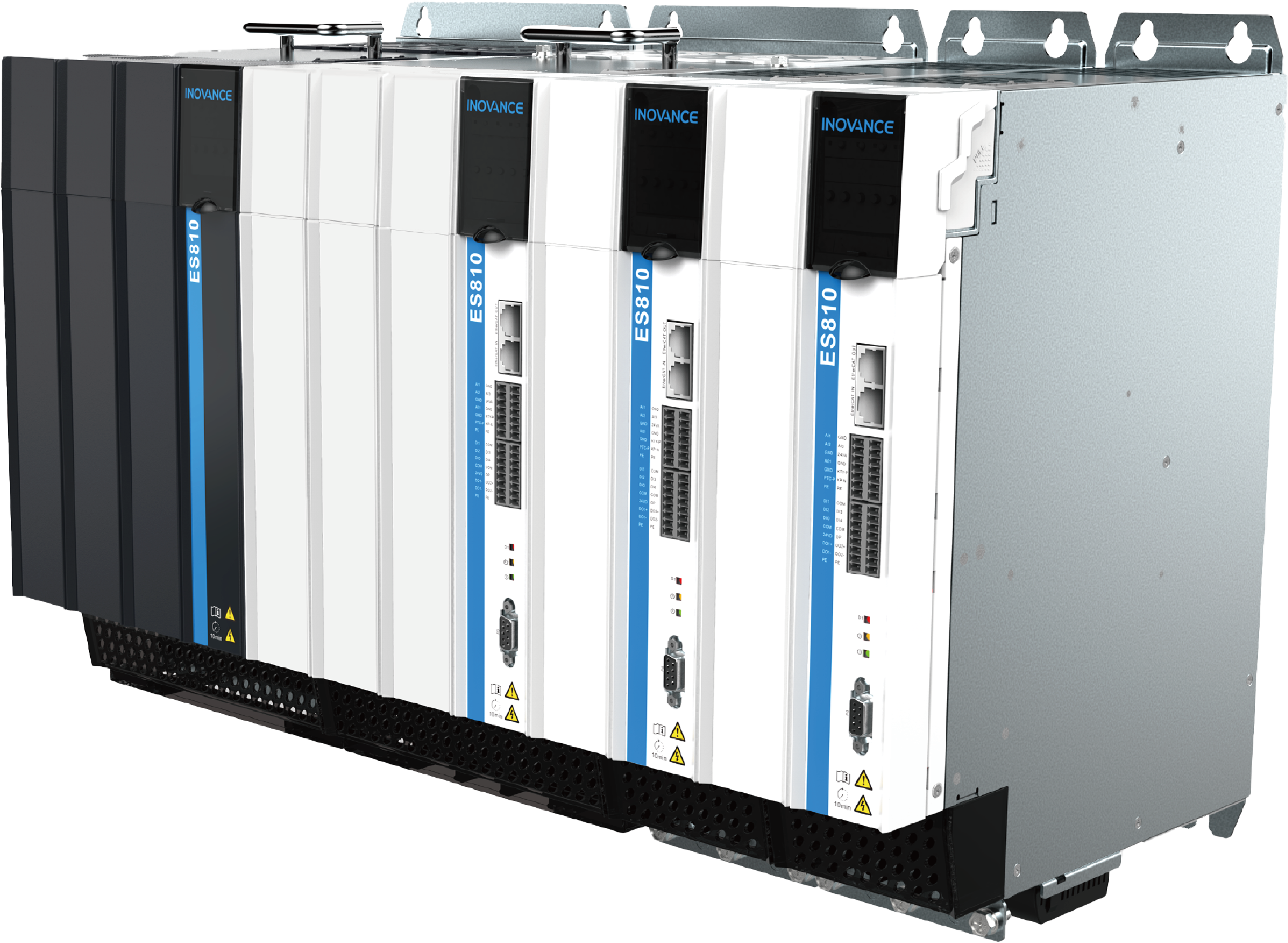

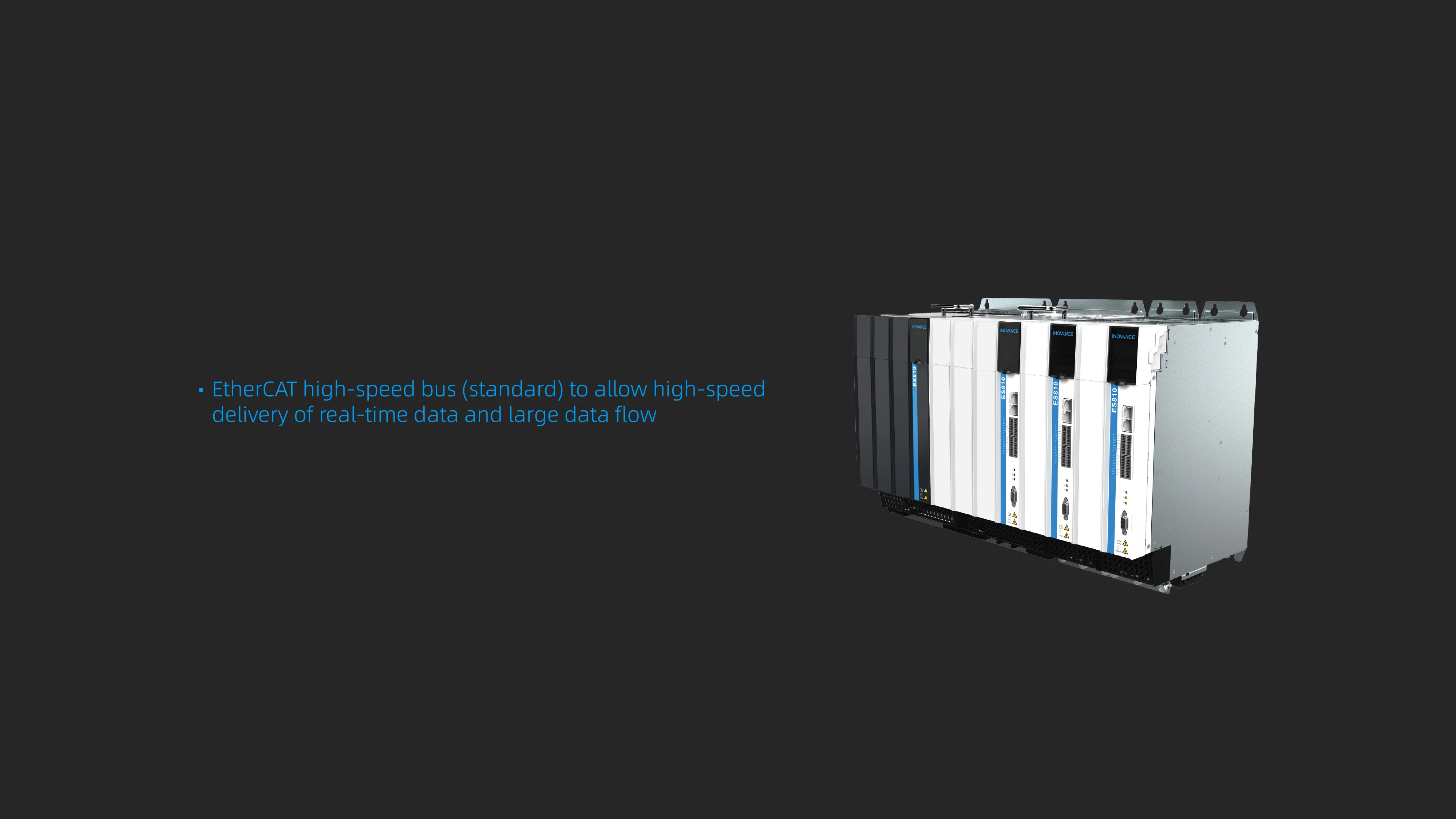

The ES810 series servo drive (multi-drive system) developed by Inovance is comprised of a rectifier unit and multiple inverter units that connected in parallel, with a power range of 2.2 kW to 126 kW. It supports EtherCAT communication to enable synchronized operation among networked servo drives, as well as position control, speed control, and torque control modes.
In addition, for all-electric injection molding machines, it integrates closed-loop control for injection speed and pressure, delivering superior molding process performance. The servo drive features simplified commissioning through functions like stiffness table configuration and inertia auto-tuning.
Compatible with ESMQ, ESMG, and ESMH series servo motors equipped with 23-bit multi-turn shock-resistant encoders, the ES810 ensures faster response and enhanced reliability. It is applicable to automation equipment including plastic molding, semiconductor manufacturing equipment, SMT machines, PCB drilling machines, material handling systems, food processing machineries, machine tools, and transmission mechineries.
