  • Test equipment
  • Test Bench
  • Test Bench: Dyno Converter / Battery Simulator / Battery Pack Tester
    • Test Bench: Dyno Converter / Battery Simulator / Battery Pack Tester
    Test Bench: Dyno Converter / Battery Simulator / Battery Pack Tester
    A highly dynamic, powerful, accurate dyno converter and DC source for testing applications.
    0

  • Feature Highlights

  • Applications

  • Framework

    • 30krpm Dyno Converter
    High Speed Dyno Converter. Full Power AFE Rectifier; compatible for PMSM and Async. MotorlMax. Freq. 1500Hz@15kHz, 30,000rpm@800kw;Output Voltage: 0~500Vac，Output Current: above 3000A；less than 500us fast response power braking protection；50uH extra output choke as default；less than 1.5ms torque response time；EtherCAT (Max refresh rate up to 8kHz); modular design; friendly upgrade；adequate protection (Torque limitation associated to speed)；CE certificate
    Test Bench: Dyno Converter / Battery Simulator / Battery Pack Tester

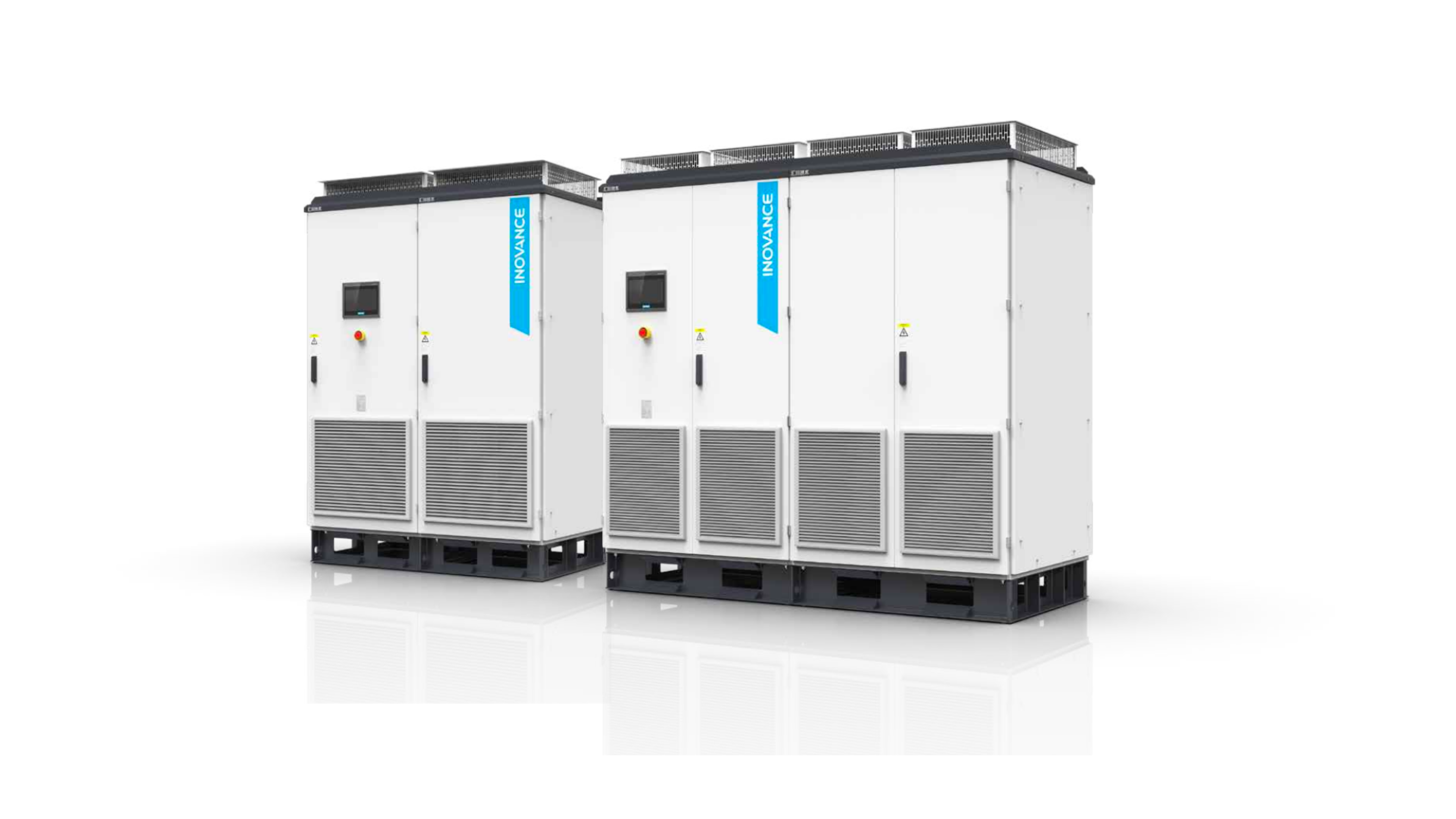

    Battery Simulator / Battery Pack Tester
    Based on MD880 platform；wide voltage range, high precision, fast dynamic response and programmable power output. Operating modes: constant voltage, constant current and constant power, and flexible parameter setting. Built in or customized battery models；600 ~ 1000A, 1200A, 24 ~ 1200V system. Control Accuracy (Voltage, Current): 0.1%FS (0.05% FS as option). Response time: 3ms (10%~90%), 6ms (-90%~+90%). Typical application: EV/HEV test stand or Battery Pack testing
    Test Bench: Dyno Converter / Battery Simulator / Battery Pack Tester
    Applications
    The EDS (epowertrain) MD880 test bench is capable of serving as both a Dyno Converter and Battery Simulator

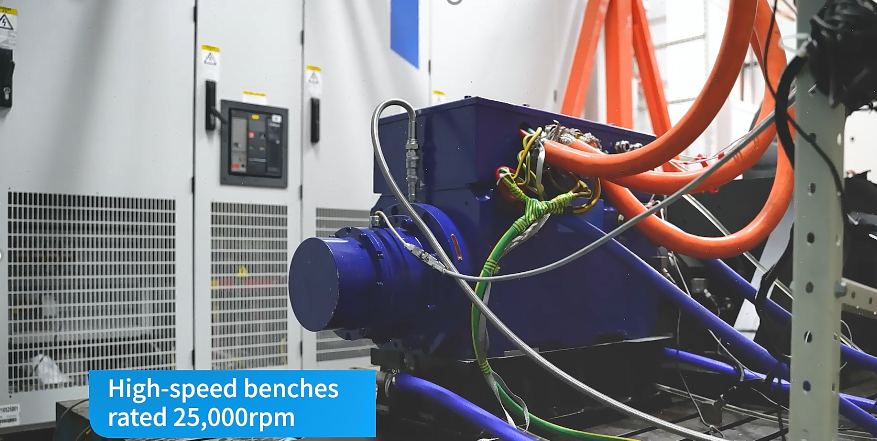

    Inovance 25,000rpm E-motors test bench in ITI-Motor Suzhou Product: High Speed MD880 Converter+ 500kW 1000A 1200V Battery Simulator
    Inovance 25,000rpm E-motors test bench in ITI-Motor Suzhou Product: High Speed MD880 Converter+ 500kW 1000A 1200V Battery Simulator
    Inovance 4-motors EDS test bench in ITI-Motor Suzhou Product: 4-motors multi-drive MD880 Converter+ 500kW 1000A 1200V Battery Simulator
    Inovance 4-motors EDS test bench in ITI-Motor Suzhou Product: 4-motors multi-drive MD880 Converter+ 500kW 1000A 1200V Battery Simulator
    Learn more

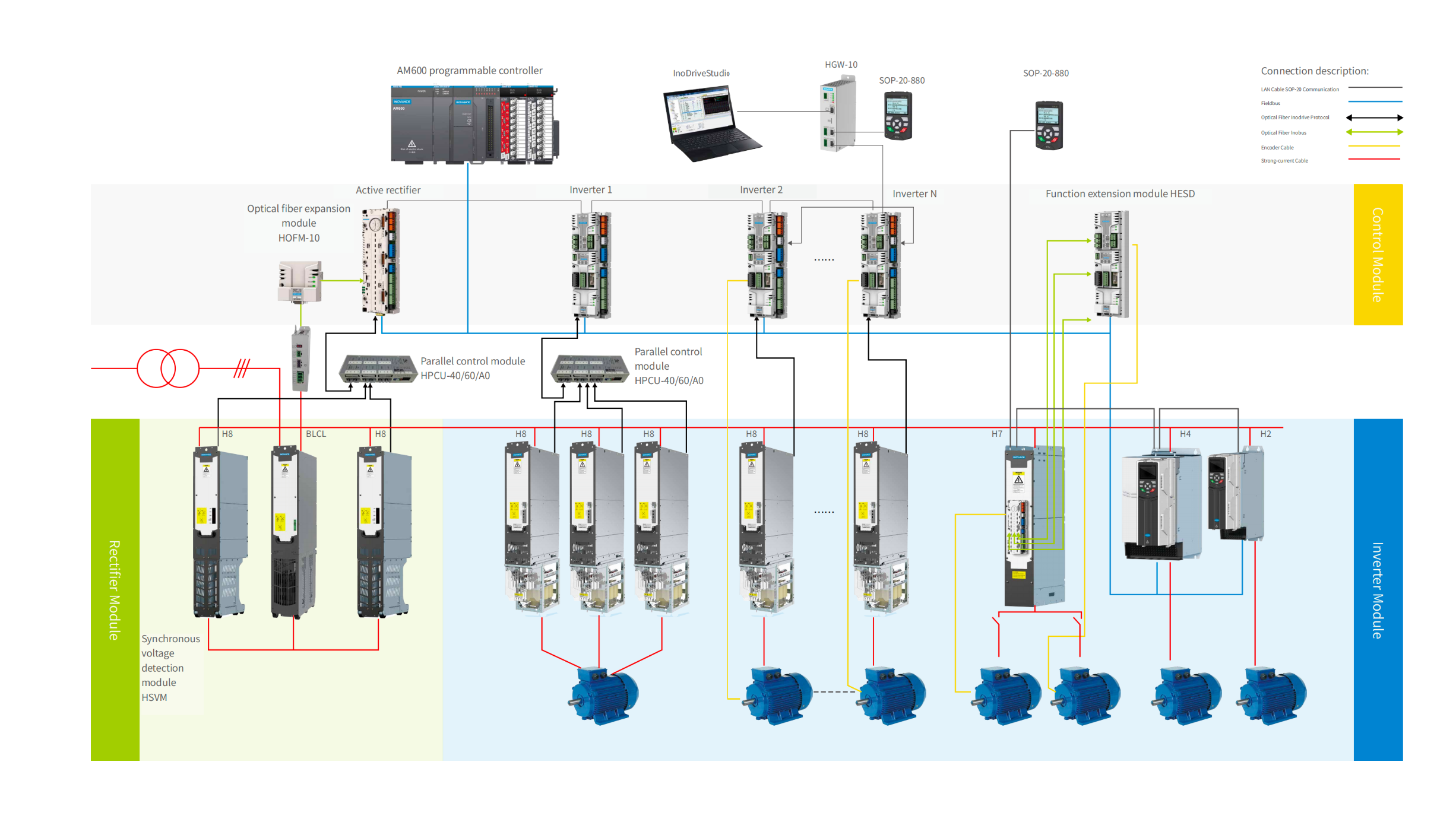

    Framework
    Test Bench: Dyno Converter / Battery Simulator / Battery Pack Tester
