Benefit
Conserved space
Small size
Enhanced Quality

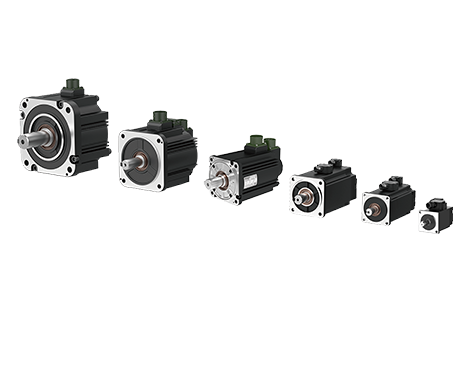

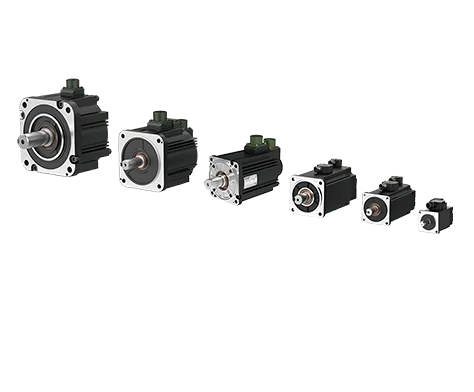

Full range of motors
Enhanced quality
High stiffness
Improved efficiency
High speed
Enhanced Quality
High energy-saving performance
Enhanced quality
Low temperature rise
Small size
Smaller footprint with torque output unchanged, max.reduction of length reaching 29% Dimensions of mounting interfaces Compatible withMS1-Z series motors
Full range of motors
Ultra-low inertia available for motors with flange size 60/80 to better fit applications requiring quick jog control; 220 V models available for motors with flange size 100/130/180
High stiffness
Stiffness of typical models increased by five levels
High speed
Max speed of MSIH1 and MS1H4 motors with flange size 40/60/80 increased from 6000 rpm to 7000 rpm Max speed of MS1H2 motors increased from 5000 rpm to 6000 rpm Max speed of MS1H3 motors (flange size 130/180) increased from 3000rpm to 4500 rpm Note: The preceding speeds are for motors with 23-bit or 26-bit encoders.
High energy-saving performance
550 W to 7.5 kW motors compliant with energy efficiency equal to IE5 standard
Low temperature rise
Optimized electromagnetic circuit to reduce temperature rise Flange size 60 & 80: Temperature rise reduced by 20K compared with previous motors
Applications
